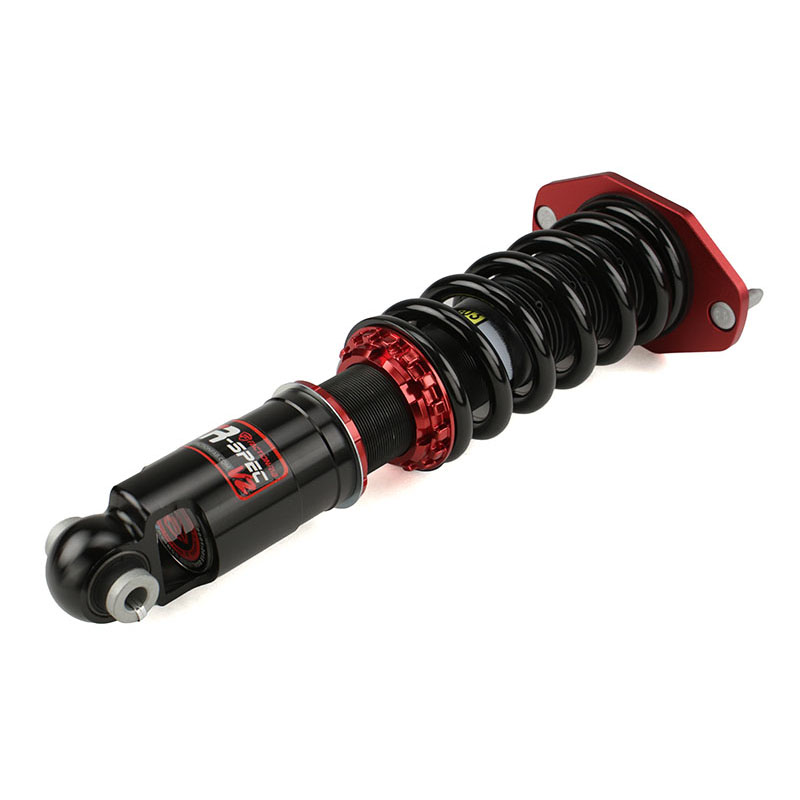

V2 FR-Spec Coilovers 2022+ WRX FactionFab

These V2 FR-Specs are designed from the ground up for racing. They have higher spring rates and valving to suit performance track driving at no cost. The FR-Spec line features a solid aluminum, pillow-ball camber plate that significantly reduces suspension deflection while giving full alignment control.

They have a mild drop range designed to maximize shock travel and fluid capacity for consistent, long lasting performance.

Specs:

• Stiffer spring rates to prioritize performance
• Independent ride height adjustment with a mild drop range in most applications
• Monotube dampers for performance without compromise
• Proven 30-click adjustable damping that can control the stiffness for driving surface adaptation
• Solid aluminum, pillow ball, camber-adjustable front top hats
• Includes adjustable front end links to suit the entire recommended ride height range
• Includes damping adjusters and wrenches

General:

• OEM fit and finish for direct Fitment, including brackets for components like ABS wires and brake lines
• Japanese steel tube Construction
• Synthetic high-performance oil
• Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
• Forged 6061 anodized adjustable collars and spring seats that resist corrosion for easy adjustment and prolonged cycle life
• Robotic welded and electroplated lower shock mounts for consistent fit and finish
• Dust boots and bump stops for shock protection and longevity

See install instructions for table with final ride height adjustment range specific to each model and coilover line.

Quick Specs

• Adjustable: Yes
• Camber Adjustable: Front Only
• Caster Adjustable: No
• Dampening Adjust Type: 30-Click
• Damper Type: Monotube
• Height Adjustable: Yes
• Independent Height Adjustable: Yes
• Spring Rate Front Metric: 12.0Kg/mm
• Spring Rate Rear Metric: 9.8Kg/mm
• Top Hats Included: Yes
• Front End Links Included
