Jeep Lower Poly Coil Bucket Kit TJ/LJ/XJ/ZJ Pipe Clayton Offroad

SKU:
COR-1100100-COR
$89.00
Brand:
Clayton Off Road
Category:
Axle Brackets
Axle
Differential
Drivetrain & Differentials

WE DO NOT SELL ANY PARTS

Please use the Find a Dealer button to locate a retailer

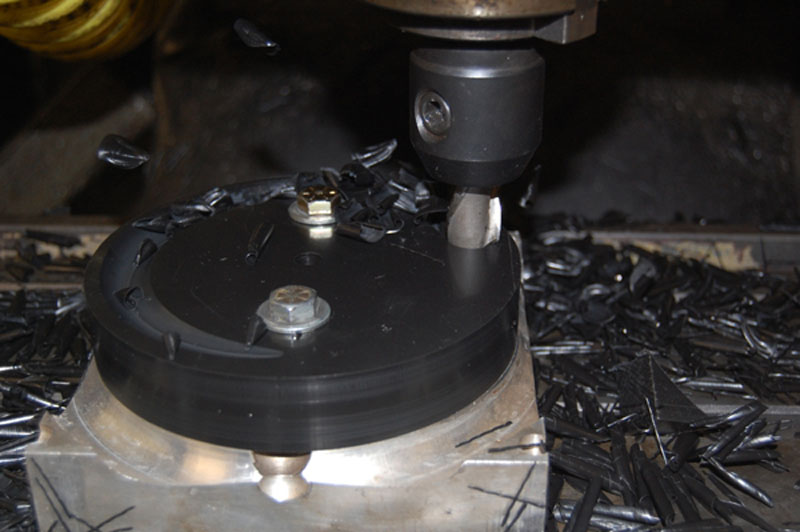

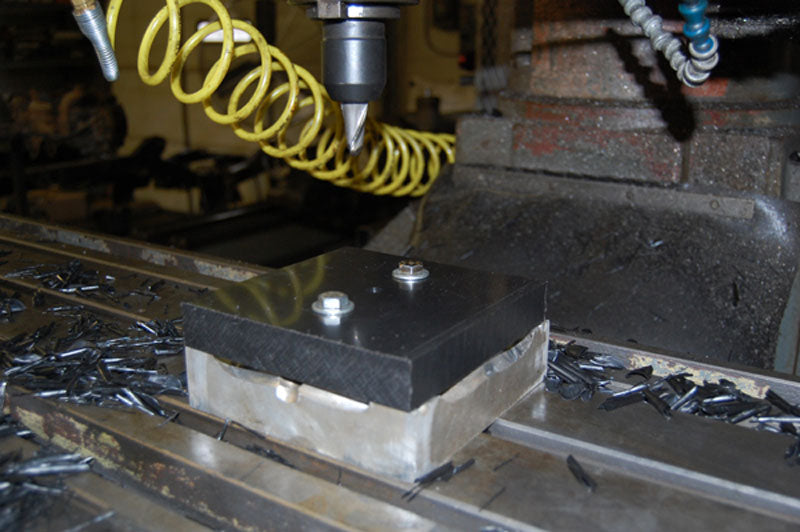

This CNC machined lower coil bucket kit is custom machined from a piece of UHMW. UHMW, or Ultra-High Molecular Weight Polyethylene, is a thermoplastic polymer with a high molecular weight and many industrial applications.

Product Features:

  • CNC Machined From UHMW
  • Helps Coil Sit Flat And Level
  • Ability To Clock Coil Bucket.
  • Built-In Spring Retainer
  • Overall Outer Dimension. ( 5.75 Inch )
  • Mounting Location Diameter For Coil. ( 4.726 Inch )

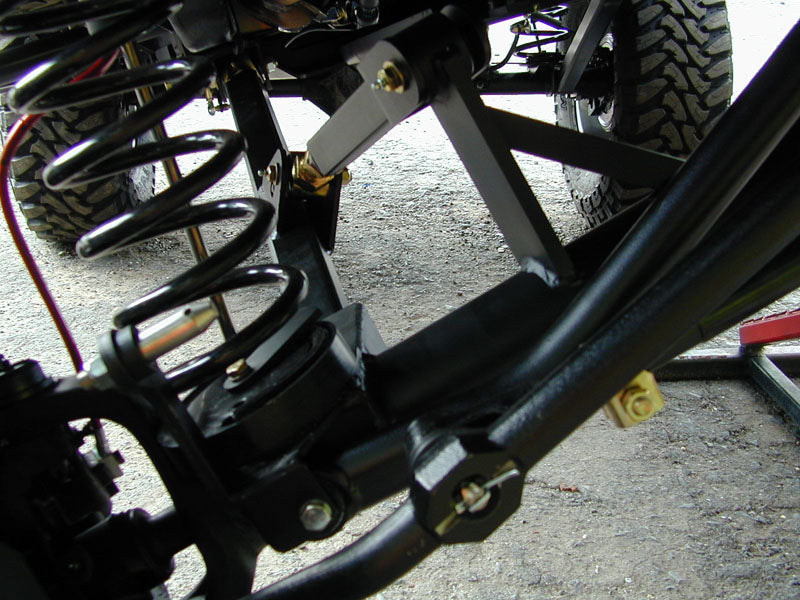

This Polyethylene is machined to accept a standard TJ, XJ or ZJ front coil spring, and a ZJ rear coil spring.

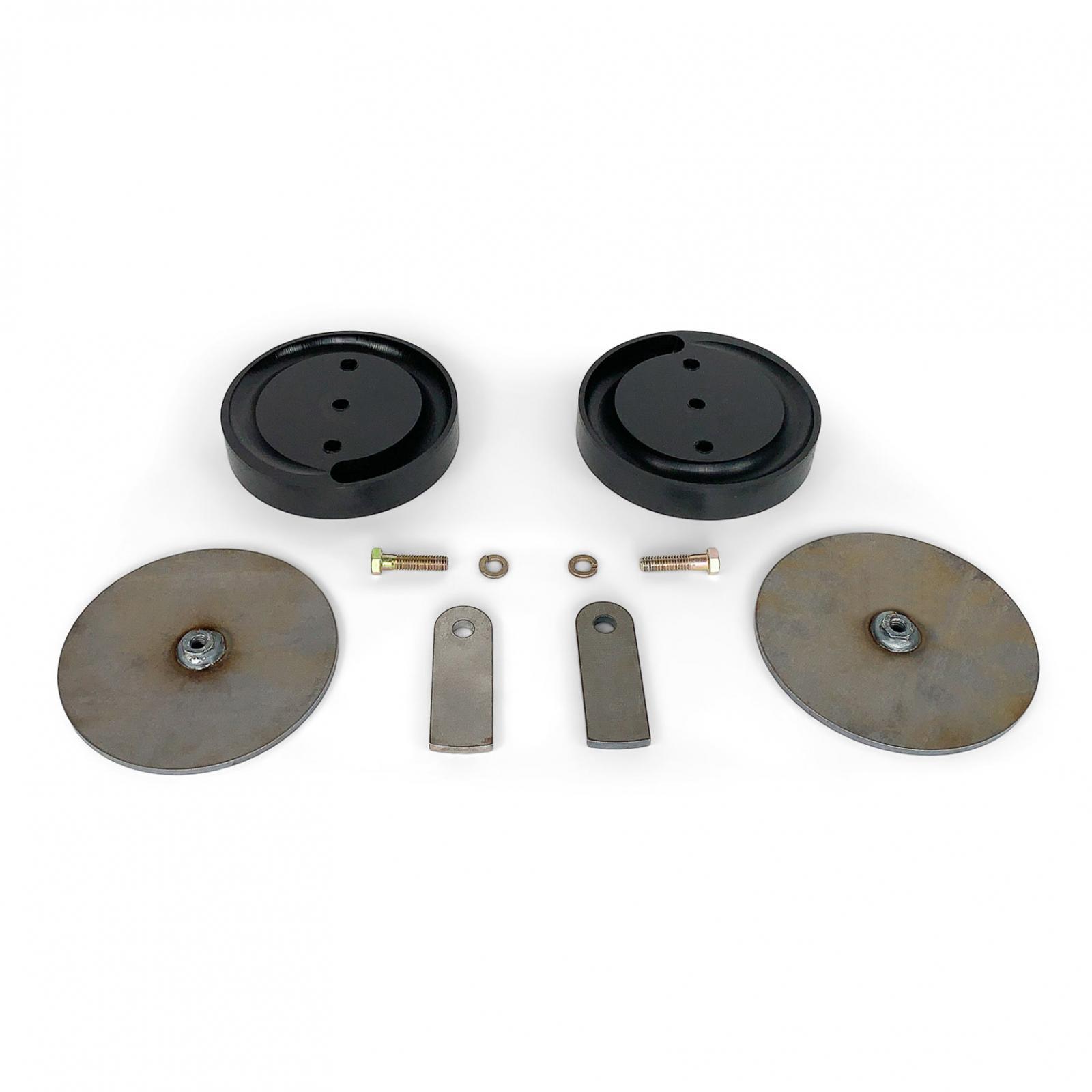

This kit comes with a 3/16s laser cut mounting plate, the CNC machine UHMW, a spring retainer tab and bolt. Sold as a pair.

Note: The included 3/16 plate must be welded to a flat supported surface.
