47/48RE Temperature Control Transmission Pan Full Send Diesel

Product Description:

This is FSD's fabricated aluminum temperature control transmission pan. This pan not only looks cool but has a few functions that set it apart. For years customers have been struggling with the factory heat exchangers on their trucks failing and causing transmission fluid and coolant to mix. In return it destroys their transmission.

Unfortunately there are absolutely No alternatives to this heat exchanger failing other then bypassing it with either one of our transmission or heater hose kits, which is fine Only if you live where it's warm year round or you don't drive the truck when it's cold.

The reason you don't want to bypass it when it's cold is because your transmission will not get up to operating temperature until you drive it and work the truck to get it to build heat. The issue with that is that your still driving the truck when the fluid is extremely cold and way below operating temperature.

On top of that, once you get on the highway or take a long drive, your trans temp will plummet and not stay near operating temp causing damage to the transmission. When transmission fluid isn't at the proper temperature it can cause all kinds of odd shifting issues in your transmission, the fluid breaks down faster and most importantly it cannot properly lubricate the parts inside of your transmission if it's too cold.

Driving with cold fluid has negative long term effects on your transmission. We have spent dozens of hours studying, designing and testing our new pan and methods of exchanging heat. We have made our own version of the factory heat exchanger, that is also deep transmission pan but it Will Not Fail

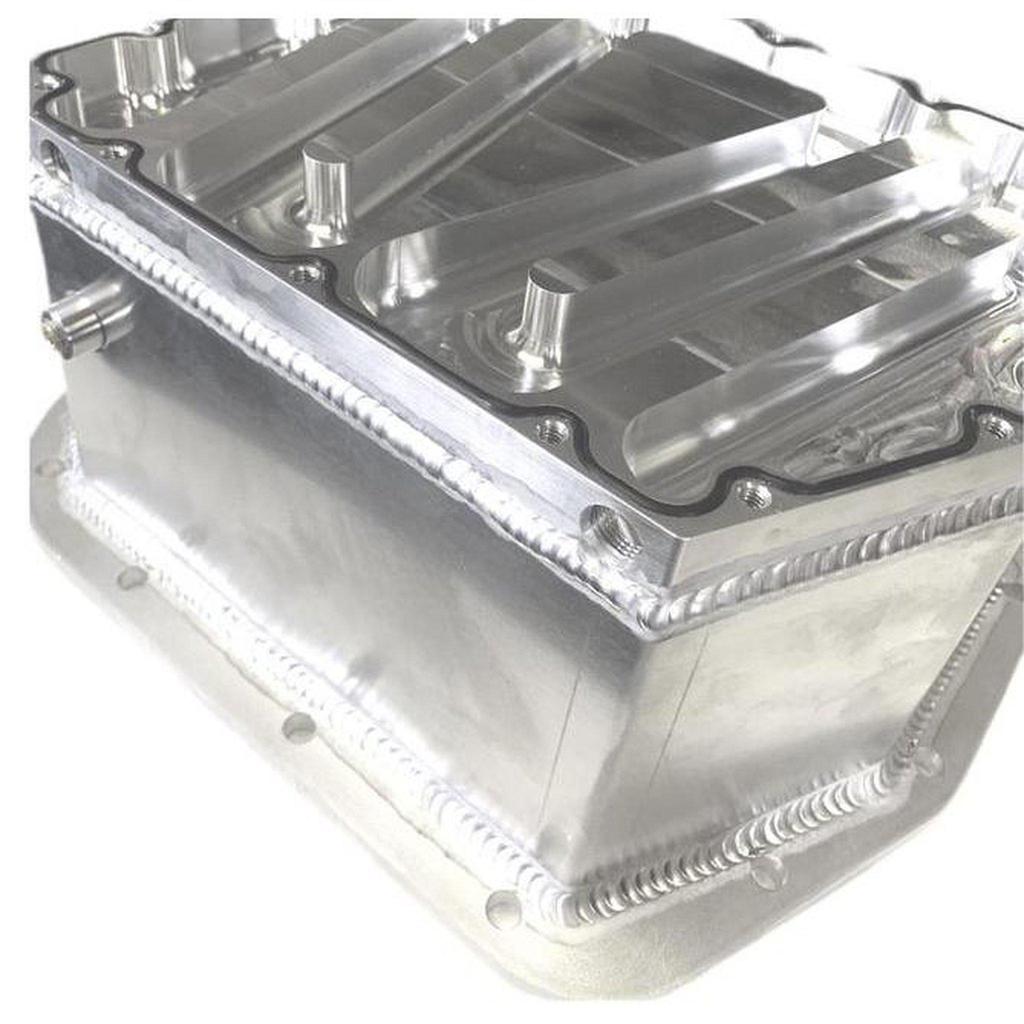

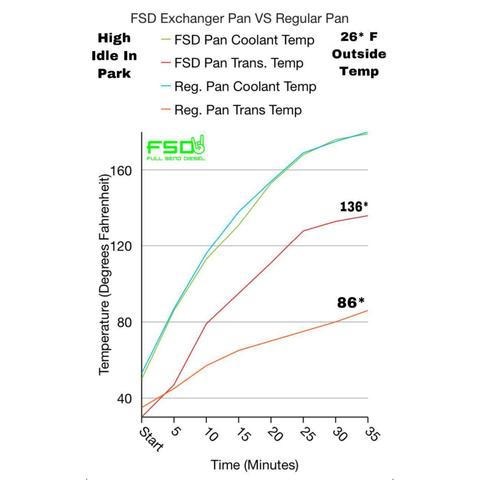

To make it simple, our pan has a billet bottom that allows coolant to flow through the bottom of the pan and help warm the transmission fluid in cold climates. We tested this using the same truck with the same outside temperature. Below are the results we gathered with our new pan VS a regular transmission pan.

As you can see, our pan warmed up the transmission fluid much faster then without our pan. After driving with our new pan on the highway at 70 MPH in 30 (F) weather, our pan maintained a trans temp of between 155-160 (F) driving normal in over drive with the torque converter locked.

Without our pan the temps would've been way below the safe zone closer to 100 (F). So not only can our pan get your transmission fluid temperature up closer to operating temperature before you go to drive it, in the cold weather on the highway it kept the transmission fluid temperature from dropping down very low to where you could start to cause damage to the transmission internally.

Upon putting the truck under load, burnouts, 4x4 launches, pulls to 120 MPH+ the trans temp stayed below 190 (F) with our remote cooler fan OFF the whole time. After we got it that hot we drove it normal and the transmission temperature quickly dropped back down.

The testing was done with our 1000+ HP compound turbo 5.9 Cummins.

This pan will be sold by its self with new bolts. You will need to run two coolant hoses to the bottom of the pan. We will have a kit for those shortly if you would like, if not all you need to do is run two 6AN or equivalent hoses to the pan in a way that the coolant will circulate constantly through the bottom of the pan.

For summer time driving if you feel you don't need the additional warming you can simply jump the two coolant hoses back together or plumb in two manual shut off valves and simply close both valves during the summer.

If your heat exchanger hasn't failed and wiped your transmission out yet, this is a Must for reliability and longevity of your transmission.

Fitment and Installation

  • Mounts to any 47/48RE Transmission
  • The two coolant lines that need to be run need to circulate.
  • We achieved the best circulation by running one line into the port that normally feeds the factory heat exchanger.
  • (1989-2002 trucks it's on the passenger side. 2003+ trucks it is on the driver side.)
  • Then we T'd the other coolant line into the one heater core hose that goes up to the front of the engine under the alternator.
  • As for the transmission lines, you can run the factory ones if you would like but the fluid would still go through the factory heat exchanger, you can purchase our bypass transmission line kit if you don't already have it.
  • A cheaper option would be to jump the two factory hoses together.

As for coolant lines, you will need our lower heater hose if you don't already have it or else when you disconnect the feed to the factory heat exchanger on the coolant side to run your hose to our pan, coolant will will come out of that hose you disconnected. A cheaper option would be to cap it off.

Features

  • Made in the USA
  • 1/8 NPT Port For A Trans Temp Gauge
  • Structurally Built To Help Brace The Transmission Case and Help Prevent Cracks From Flexing
  • Precision Tig Welded

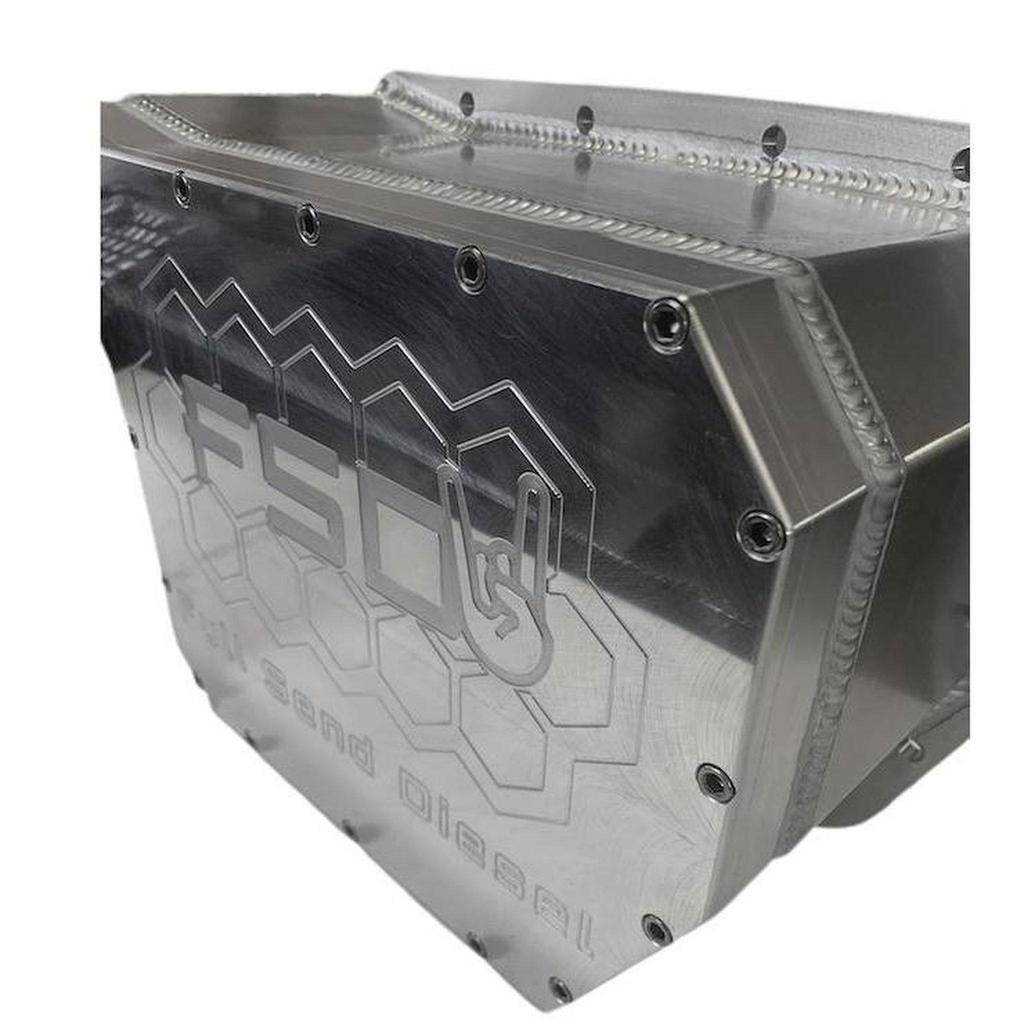

  • Billet Aluminum Bottom
  • Guaranteed to not cross contaminte
  • Lifetime Warranty
  • Magnetic Drain Plug
  • Includes Stainless Steel Mounting Hardware
  • Warm Transmission Fluid In Cold Climates
  • Racers Can Run Ice Water Through This Pan For Additional Cooling
  • Fits 47RH/RE/48RE Transmissions
